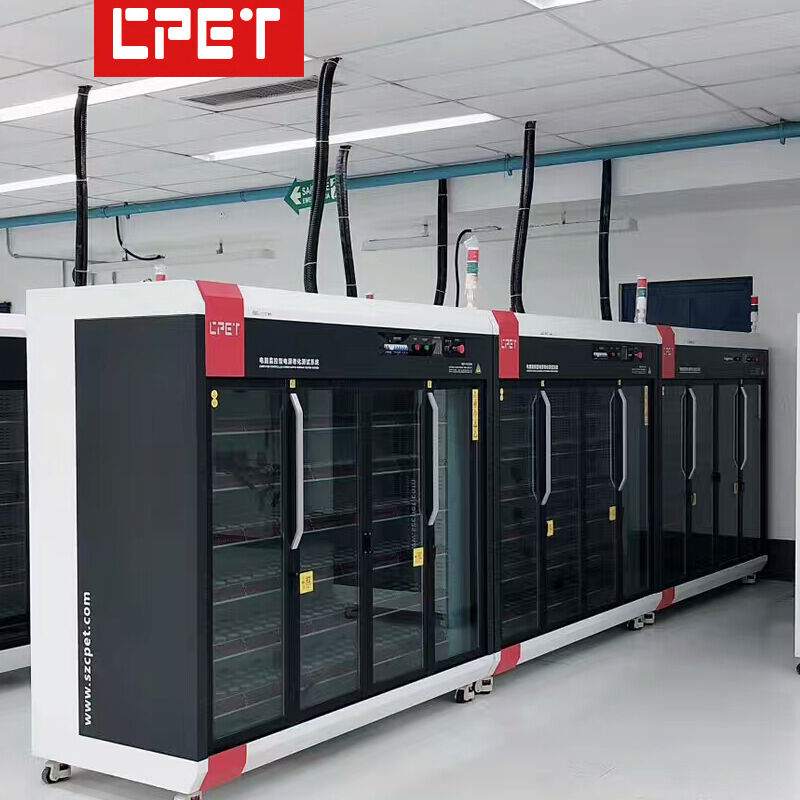

MPPT Controller Burn-In Cabinet S485/RS232 Communication DC-DC Aging Test System

Name: MPPT Controller Burn-In Cabinet S485/RS232 Communication DC-DC Aging Test System
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-CPDC3001
Price: 58000 USD
Availability: InStock

Chi tiết sản phẩm

Nguồn gốc: Trung Quốc

Hàng hiệu: CPET

Chứng nhận: CE,ROHS

Số mô hình: CP-CPDC3001

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu: 1

Giá bán: ¥ 58000 yuan

chi tiết đóng gói: Gói hộp gỗ

Thời gian giao hàng: 30 NGÀY LÀM VIỆC

Điều khoản thanh toán: T/T

Khả năng cung cấp: 30 bộ/tháng

Nhận được giá tốt nhất

Chi tiết sản phẩm

Mô tả sản phẩm

Chi tiết sản phẩm

Làm nổi bật:

Mô hình tải:	Loại tải điện tử	Ứng dụng:	Kiểm tra nguồn điện
Kích thước bên ngoài:	205012001900mm	Điện áp làm việc định mức:	AC:380VAC
Kích thước xe đẩy:	L2050W1250H2050mm	Chiều cao xe đẩy:	270 mm）

Mô hình tải:	Loại tải điện tử
Ứng dụng:	Kiểm tra nguồn điện
Kích thước bên ngoài:	205012001900mm
Điện áp làm việc định mức:	AC:380VAC
Kích thước xe đẩy:	L2050W1250H2050mm
Chiều cao xe đẩy:	270 mm）

Mô tả sản phẩm

MPPT Controller Burn-In Cabinet S485/RS232 Communication DC-DC Aging Test System

Outstanding functions

The software sets load parameters and monitors the voltage, current, and power parameters in real time
CC, CV, CR, CP load modes
Parallel channels can be used in CC load mode to meet product power expansion
Built-in automatic protection device for overtemperature and smoke alarm
Can edit switch timing, load transformation function

Performance parameters

Burn-in cabinet structure and Burn-in quantity planning	Trolley size (mm)	L2050W1250H2050mm (size of a single Burn-in cabinet)
	Number of trolley layers	4 layers, product area depth 400mm, (6 Burn-in positions per layer)
	Trolley height	280mm
	Trolley structure material	cold rolled sheet
	Load area cooling method	Top turbine exhaust fan top row type (easy to control the ambient temperature)
	Layer insulation and anti-static method	Epoxy insulation board with heat dissipation holes on the surface
	Overall burn-in room structure	Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine
Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quant	Energy recovery module control method	RS485 communication mode, upper computer uses RS232 communication mode
	Energy recovery module isolation mode	Electronic load module channel adopts photoelectric isolation (communication and power supply isolation)
	Install the skill module model	CP8601, 24PCS in one cabinet
	Number of installed DC source modules	Each burn-in cabinet is configured with six 10-120V /200A /20KW DC power modules
	Energy recovery module carrying capacity	Load capacity: 2.5-60Vdc/0.5-240A/3.2kW (voltage, current adjustable
	rgy recovery module design architecture	No relay, long life design scheme (independent intellectual property rights)
	Number of burn-in products in the entire cabinet	One cabinet burn-in MTTP modules of less than 3.2KW 24PCS
Introduction to the main functions of the system	Suitable for MPPT controller DC to DC power supply burn-in
	Free configuration of self-developed special monitoring software for power Burn-in, with independent intellectual property rights and no legal risks
	Use programmable electronic load module to monitor output terminal voltage, current and power parameters
	Dedicated monitoring software for Burn-in enjoys free ﬁnal upgrade service, powerful expansion function, saving repeated investment in equipment
	Burn-in parameters, time setting, ON/OFF sequence editing (test of the product being tested on and off), support for automatic voltage switching, load conversion and other functions can be programmed (Burn-in parameters can be automatically switched in a fixed time period)
	The function of automatically turning off the power at the end of the Burn-in of the tested power supply is convenient for unattended
	The computer automatically displays the quality of the tested power supply product, and multiple windows in the window are convenient for centralized management, which saves operators and improves production efficiency
	The computer can store the Burn-in data report of the tested power supply, the process parameters of the tested power supply are easy to trace
	RS232 to RS485 adopts photoelectric isolation converter to improve communication reliability and prevent lightning damage to equipment
	Each computer can monitor 18 devices at the same time, (each serial port can connect to 63 slaves, and each computer supports up to 18 serial ports)
	The power Burn-in monitoring software has a built-in help file, which is convenient for solving operation questions immediately
